Hot Rolled Steel H-beams Channel Steel Beam for Steel Structure Building
Hot Rolled Steel H-beams Channel Steel Beam for Steel Structure Building
Product description

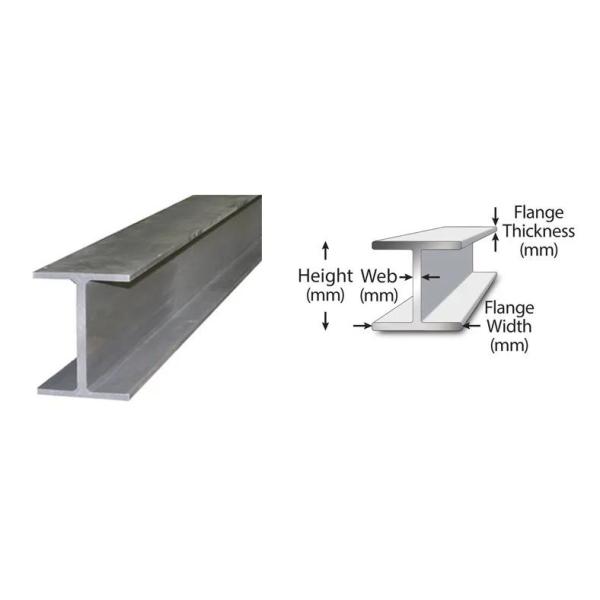

H-beam is a kind of economical section and high-efficiency section with more optimized cross-sectional area distribution and more reasonable strength-to-weight ratio. It is named after its section is the same as the English letter "H". Since all parts of H-beam are arranged at right angles, H-beam has the advantages of strong bending resistance, simple construction, cost saving and light weight in all directions, and has been widely used.
Product details
Product parameter
According to your request,each size can be selected for different application.Please contact us! |
| Product Name | H Beam |
| Length | Customize, Customers' Requirements |
| Material | Astm A36 |
| Standard | GB ASTM, JIS, SUS, DIN, EN etc |
| Technique | Hot rolled |
| Stock | Ready in stocks |
| MOQ | 1 ton , We can accept sample order. |
| Shipment Time | Within 7-15 workdays after receiving deposit or L/C |
| Export Packing | Standard seaworthy export packing or according to the customers' request |
| Capacity | 5000 Ton/Tons per Month |

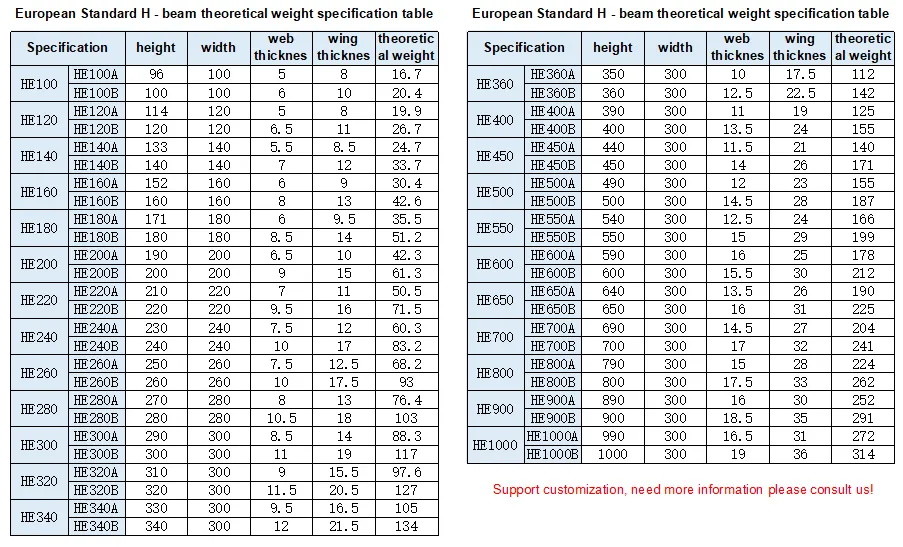

| H Beam Specification |
| size | w/m | size | w/m | size | w/m |
| 100*50*5*7 | 9.54 | 250*255*14*14 | 82.2 | 400*400*13*21 | 172 |
| 100*100*6*8 | 17.2 | 294*200*8*12 | 57.3 | 400*408*21*21 | 197 |
| 125*60*6*8 | 13.3 | 300*150*6.5*9 | 37.3 | 414*405*18*28 | 233 |
| 125*125*6.5*9 | 23.8 | 294*302*12*12 | 85 | 440*300*11*18 | 124 |
| 148*100*6*9 | 21.4 | 300*300*10*15 | 94.5 | 446*199*7*11 | 66.7 |
| 150*75*5*7 | 14.3 | 300*305*15*15 | 106 | 450*200*9*14 | 76.5 |
| 150*150*7*10 | 31.9 | 338*351*13*13 | 106 | 482*300*11*15 | 115 |
| 175*90*5*8 | 18.2 | 340*250*9*14 | 79.7 | 488*300*11*18 | 129 |
| 175*175*7.5*11 | 40.3 | 344*354*16*16 | 131 | 496*199*9*14 | 79.5 |
| 194*150*6*9 | 31.2 | 346*174*6*9 | 41.8 | 500*200*10*16 | 89.6 |
| 198*99*4.5*7 | 18.5 | 350*175*7*11 | 50 | 582*300*12*17 | 137 |
| 200*100*5.5*8 | 21.7 | 344*348*10*16 | 115 | 588*300*12*20 | 151 |
| 200*200*8*12 | 50.5 | 350*350*12*19 | 137 | 596*199*10*15 | 95.1 |
| 200*204*12*12 | 72.28 | 388*402*15*15 | 141 | 600*200*11*17 | 106 |
| 244*175*7*11 | 44.1 | 390*300*10*16 | 107 | 700*300*13*24 | 185 |
| 244*252*11*11 | 64.4 | 394*398*11*18 | 147 | 792*300*14*22 | 191 |
| 248*124*5*8 | 25.8 | 400*150*8*13 | 55.8 | 800*300*14*26 | 210 |
| 250*125*6*9 | 29.7 | 396*199*7*11 | 56.7 | 900*300*16*28 | 243 |
Application
H-beam steel is widely used in: various civil and industrial building structures; Mainly used in Large Bridges with large bearing capacity, good cross-section stability and large span are required; Heavy equipment; Expressway; Ship frame;Mine support; Foundation treatment and dam works;
Packing and transportation
FAQ
Q1:What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery.
Q2: What is the terms of trade?
A: EXW, FOB, CIF, CFR, DDU.
Q3: What is the terms of packing?
A: Generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers'
requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after received your deposit. For productiong period, it
usually takes about 15-30 days afer receiving the deposit.
Q5: Could you produce according to the samples?
A: Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
Product Tags:
|
|
SUS DIN 100mm H Beam Channel Steel Beam For Structure Building Images
|
