Q195 Q235 Q255 Q215 Channel Steel Beam 4.5mm Mild Carbon Channel Steel
Product description
Channel steel is a common construction component and typically made from hot-rolled steel with a wide, flat surface and flanges at right angles on either side. The outer edge is sharply angled while the inner surface contains radius corners.
Product details
Product parameter
| Grade | Q195 Q235 Q255 Q215 |
| Length | Customer's Required |
| Standard | GB,AISI,ASTM etc. |
| Technique | Cold bend |
| Surface Treatment | Clean, blasting and painting according to customer requirement |
| Thickness tolerance | ±0.1mm |
| Application | Steel Channels fit both Indoor and Outdoor usage. They are normally employed for general construction. Few examples of use are as Lintel above doors and as support for floor joists. Indoor usage is mostly as Holders, Covers, Frames, Inserts, Décor, Brackets, Tracks, Slides, Posts etc. |
| MOQ | 5tons. |
| Shipment time | Within 5-8 workdays after receiving deposit |
| Capacity | 50000 tons/month |
| Sample | Available |
Theoretical weight reference
| Specifications | Height (mm) | Leg width (mm) | Waist thickness (mm) | Cross-sectional area (cm²) | Theoretical weight (kg) |
| 5# | 50 | 37 | 4.5 | 6.928 | 5.438 |
| 6.3# | 63 | 40 | 4.8 | 8.451 | 6.634 |
| 6.5# | 65 | 40 | 4.3 | | 6.709 |
| 8# | 80 | 43 | 5.0 | 10.248 | 8.045 |
| 10# | 100 | 48 | 5.3 | 12.748 | 10.007 |
| 12# | 120 | 53 | 5.5 | | 12.059 |
| 12.6 | 126 | 53 | 5.5 | 15.692 | 12.319 |
| 14#a | 140 | 58 | 6.0 | 18.516 | 14.535 |
| 14#b | 140 | 60 | 8 | 21.316 | 16.733 |
| 16#a | 160 | 63 | 6.5 | 21.962 | 17.24 |
| 16#b | 160 | 65 | 8.5 | 25.162 | 19.752 |
| 18#a | 180 | 68 | 7 | 25.699 | 20.174 |
| 18#b | 180 | 70 | 9 | 29.299 | 23 |
| 20#a | 200 | 73 | 7 | 28.837 | 22.637 |
| 20#b | 200 | 75 | 9 | 32.837 | 25.777 |
| 22#a | 220 | 77 | 7 | 31.846 | 24.999 |
| 22#b | 220 | 79 | 9 | 36.246 | 28.453 |
| 25#a | 250 | 78 | 7 | 34.917 | 27.41 |
| 25#b | 250 | 80 | 9 | 39.917 | 31.335 |
| 25#c | 250 | 82 | 11 | 44.917 | 35.26 |
| 28#a | 280 | 82 | 7.5 | 40.034 | 31.427 |
| 28#b | 280 | 84 | 9.5 | 45.634 | 35.832 |
| 28#c | 280 | 86 | 11.5 | 51.234 | 40.219 |
| 30#a | 300 | 85 | 7.5 | | 34.463 |
| 30#b | 300 | 87 | 9.5 | | 39.173 |
| 30#c | 300 | 89 | 11.5 | | 43.883 |
| 32#a | 320 | 88 | 8 | 48.513 | 38.083 |
| 32#b | 320 | 90 | 10 | 54.913 | 43.107 |
| 32#c | 320 | 92 | 12 | 61.313 | 48.131 |
| 36#a | 360 | 96 | 9 | 60.910 | 47.814 |
| 36#b | 360 | 98 | 11 | 68.110 | 53.466 |
| 36#c | 360 | 100 | 13 | 75.310 | 59.118 |
| 40#a | 400 | 100 | 10.5 | 75.068 | 58.928 |
| 40#b | 400 | 102 | 12.5 | 83.068 | 65.208 |
| 40#c | 400 | 104 | 14.5 | 91.068 | 71.488 |

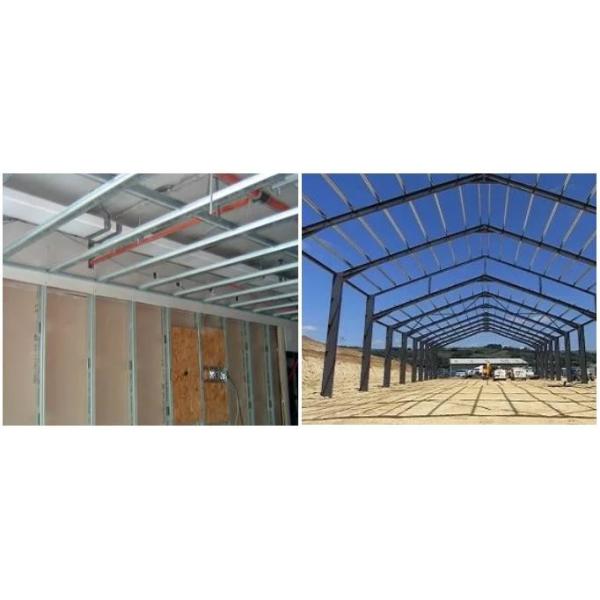

Application
Steel Channels fit both Indoor and Outdoor usage. They are normally employed for general construction. Few examples of use are as Lintel above doors and as support for floor joists. Indoor usage is mostly as Holders, Covers, Frames, Inserts, Décor, Brackets, Tracks, Slides, Posts etc.
FAQ
Q1:What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery.
Q2: What is the terms of trade?
A: EXW, FOB, CIF, CFR, DDU.
Q3: What is the terms of packing?
A: Generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers'
requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after received your deposit. For productiong period, it
usually takes about 15-30 days afer receiving the deposit.
Q5: Could you produce according to the samples?
A: Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
Q6:Can we visit your factory?
A:Warmly welcome once we have your schedule we will pick you up .
Why you choose us?
We are manufacturers, product price advantage, quality assured.
We have perfect production equipment, strong production strength, timely completion of each order.
The company aims to operate in good faith to meet customer needs product specifications and sizes are customized.
- Intimate after-sales service:
Perfect after-sales service, excellent product quality, choose us at ease.
